On Zulip, I was asked how to write a syntax highlighter for YSH. Let's compare these ways of doing it:

1. Coarse Parsing
   • Editors like Vim and TextMate use the model of regexes + a context stack.
   • With this model, we can recognize YSH "lexer modes", and produce an accurate highlighter. Coarse does not mean inaccurate!
2. Context-Free Parsing
   • Tree-sitter uses the model of resilient, incremental context-free parsing.
   • YSH should eventually have a Tree-sitter grammar. But creating one is tricky because context-free grammars are too limited for "real languages". Recognizing most languages (Python, JavaScript, C) with Tree-sitter requires writing C code in an external scanner, and the same is true for YSH.
3. Full Parsing
   • We could use the YSH parser itself to create a 100% accurate syntax highlighter. ysh --tool syntax-tree myscript.ysh shows you the syntax tree.
   • This likely wouldn't be useful in text editors.

So, different tools have different computational models, and we have to express YSH syntax within those limits.

After writing this Vim plugin for YSH, I wrote docs describing the "coarse parsing" algorithm, linked below. It's perhaps surprising that coarse parsing is not only easier than context-free parsing, but more accurate. For evidence of that, see the bugs fixed in tree-sitter-bash, particularly in the external scanner:

Background on YSH Syntax

YSH syntax is derived from Unix shell syntax, which means that it has lexer modes. The modes are roughly:

1. Commands - echo hi
2. Double-Quoted Strings - echo "sum = $[x + 42], today is $(date)"
3. Expressions - var x = 42 + a[i]

This makes YSH different than C or Java, but the same is true of Python and JavaScript. They grew more shell-like when they added string interpolation, in the 2010's:

console.log(`sum = ${x + 42}`)   // JavaScript

print(f'sum = {x + 42}')         # Python

(See demo/nested.py and demo/nested.js.)

Algorithm 1: Coarse Parsing - Vim, TextMate

With coarse parsing, we break the problem down into 3 steps. Refer to these docs with screenshots for details:

Coarse parsing is roughly equivalent to identifying these features:

# comments

r'    u'    $"         # string literals
r'''  u'''  $"""       # multi-line literals

()    []    ()         # balanced pairs

$()   $[]  ${}         # sigil pairs
@()   @[]
^()   ^[]       ^""

const      var         # keywords that take expressions
setvar     setglobal
call       =
proc       func        # keywords with signatures

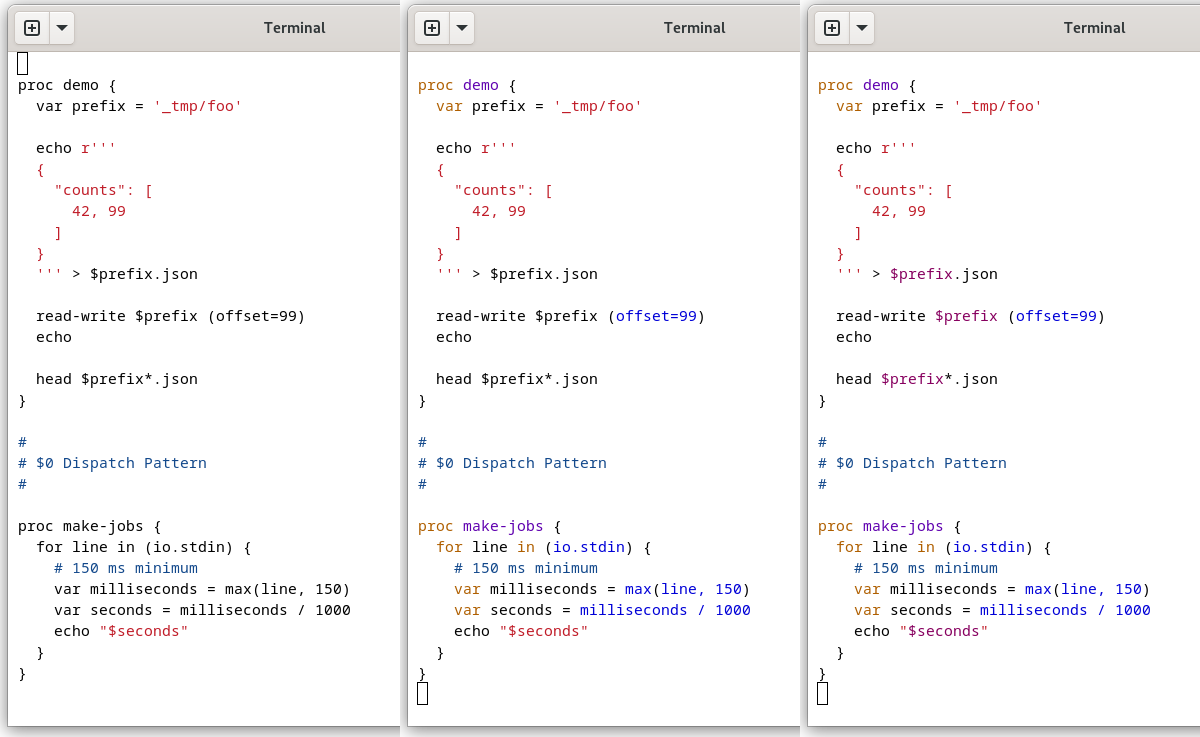

Here are the 3 stages, side-by-side. The first stage is minimal; the second stage recognizes lexer modes (e.g. commands vs. expressions); and the third fills in details.

You can see testdata/ rendered with each of 3 stages at https://pages.oils.pub/oils-vim/.

The coarse parsing approach should work with:

1. Vim
2. TextMate (used by VSCode)
3. SublimeText (more powerful than TextMate)
4. Emacs
   • I'm not sure if font-lock can do it, but Emacs also supports arbitrary Lisp code.

Highlighting issues

Let's keep track of any correctness issues here:

• stage 1
  • echo not#comment vs echo yes;#comment (easy to fix)
  • r'' with word boundary \< - TODO: YSH will change.
• stage 2
  • echo for - for is not a keyword

Project Idea: Tree-sitter Can Express Stage 1

In Tree-sitter, Stage 2 is hard because recursive lexer modes require an external scanner, written in C. The C API is unusual because of incremental lexing and parsing.

On the other hand, stage 1 is easy to express. If you're interested in Tree-sitter, I recommend starting with stage 1, as "practice".

More Implementations of Coarse Parsing

• micro-syntax in C++, re2c
  • It's a simple syntax highlighter for shell, Python, C++, ASDL, and more languages
  • It generates src-tree.wwz
  • TODO
    • We need a YSH definition
    • micro-syntax should probably support regions and recursion, like Vim.
• TODO: YSH itself is powerful enough to express coarse parsing!
  • At each position, Vim must consider syn match and syn region start= regexes.
  • If none match, then it advances to the next byte.
  • I think it must match each pattern separately, rather than using | to match "in parallel". re2c "longest match" semantics don't work. But maybe Python's backtracking "leftmost match" does?
  • We also use nextgroup= and end=''me=s-1 and \zs (start position)
• Trivia: Vim started developing regexp_nfa.c around 2013
• lobste.rs thread on parsing
  • at least 2 people are using coarse parsing

Algorithm 2: Context-Free Parsing with Tree-sitter

Even though coarse parsing is easier than context-free parsing, it should give you most of the YSH knowledge necessary to create a context-free parser.

That said, it may be helpful for us to "recast" YSH syntax as context-free, with a YSH-only stateful lexer. (Right now, OSH and YSH share the same lexer.)

We could create such a YSH-only lexer, and a context-free grammar expressed with pgen2. Some notes here:

Here's how I would start:

1. Create lex_mode_e.YshDQ, for double-quoted strings in YSH.
2. Add a string literal grammar in ysh/grammar.pgen2
3. Interleave double quoted strings with the expression parser

Then do the same for YSH commands: add a lexer mode, a context-free grammar, and interleave them with the rest of the language.

Comparisons

As of 2025-06, our ysh.vim plugin is less than 500 lines.

Shell syntax is harder to understand than YSH syntax, but these comparisons might be useful:

Note that some plugins (like Emacs) also implement smart navigation and indenting, not just syntax highlighting.

Please Ask Questions on Zulip

If you're interested in supporting YSH in a new editor, please ask questions on #tools-for-oils at https://oilshell.zulipchat.com/.

We'd like to help create many syntax highlighters!

These docs are a good overview, but they may not be complete.

Appendix

Structure of the Vim plugin

This command shows how the code is structured:

./run.sh count-lines

Guide:

• ysh.vim chooses one of stage{1,2,3}.vim
• stage{1,2,3}.vim includes other files
• lexer-modes.vim is the "high level structure"
• lib-*.vim recognize different features
• testdata/ has examples of each feature

Summary:

• Stage 1 - ~60 lines
• Stage 2 - ~260 more lines
  • syntax/stage2.vim
  • syntax/lexer-modes.vim - declarative definitions of YSH lexer modes, with Vim syn cluster! Vim is pretty nice.
  • testdata/recursive-modes.ysh
  • Vim features: syn cluster, contains=@cluster, matchgroup=, nextgroup=, skipwhite
  • YSH features: keywords, nested pairs, sigil pairs, multi-line expressions, all the command <-> expression transitions
• Stage 3 - ~90 more lines

Notes on YSH Syntax

To change:

• echo foo = bar - we might want to make = special
• a = 42 should work, regardless of context
• $[x] @[array] @array should be available in expression mode
  • it's ok if $x is not there - that is a gentle nudge
• Commands that end with expression: $(call 42) and $(= 42)
• --foo=r'raw' is misleading, and same with u'' b''
  • We should fix the YSH quirk. Then using the \< word boundary will not misunderstand any correct code.

Note:

• pp [ch] vs pp *.[ch] - the leading space distinguishes the two

Links

• Polyglot Language Understanding
  • Some research for using the coarse parsing technique across multiple languages.
  • One motivation for this is that I found Github's new source browser, with semantic navigation, underwhelming.
